Case Study: Using Computer Vision to Detect the Quality of Bricks

Client Profile

Industry: Building Materials Manufacturing
Size: Large brick manufacturer with multiple production facilities
Location: United States
Production Volume: 150+ million bricks annually

Our client is one of the largest brick manufacturers in the United States, producing a wide range of brick, stone, and concrete products for residential, commercial, and architectural projects. With a strong commitment to quality, environmental sustainability, and safety, they were seeking ways to enhance their quality control process while reducing waste and warranty claims.

The Vision AI solution for bricks quality check

The Challenge

Despite being an industry leader, the client was experiencing significant challenges with their brick quality inspection process:

• High-Speed Production: Bricks moving rapidly on conveyor belts made manual inspection extremely difficult and error-prone.
• Inconsistent Quality Control: Human inspectors could not maintain consistent standards across shifts and facilities.
• Warranty Claims: Defective bricks that reached customers resulted in millions of dollars in annual warranty claims.
• Excessive Waste: Too many "false positive" rejections led to unnecessary waste of good products.
• Subjective Decision-Making: Determining whether minor imperfections warranted rejection was highly subjective.
• Production Bottlenecks: Manual inspection created slowdowns in the production process.

The Production Director explained their situation: "Our quality control process was caught between two competing problems. On one hand, we were missing defects that led to warranty claims. On the other hand, we were rejecting too many good bricks with minor imperfections that wouldn't affect performance. We needed a solution that could make consistent, intelligent decisions about brick quality at production speeds."

The Solution

After evaluating several options, the brick manufacturer partnered with Visionify to implement an AI-powered Computer Vision Quality Control System for their production lines:

1. Inline Inspection System

• Installation of high-resolution cameras above conveyor belts at critical inspection points
• Custom lighting setup optimized for brick surface analysis
• Integration with existing conveyor systems
• Real-time image capture and analysis of each brick during production

2. Advanced Defect Detection

• Computer vision algorithms specifically trained to identify multiple brick defects:
  • Cracks and fractures
  • Chips and corners damage
  • Surface irregularities
  • Color inconsistencies
  • Dimensional abnormalities
• Machine learning models capable of distinguishing between critical and non-critical defects

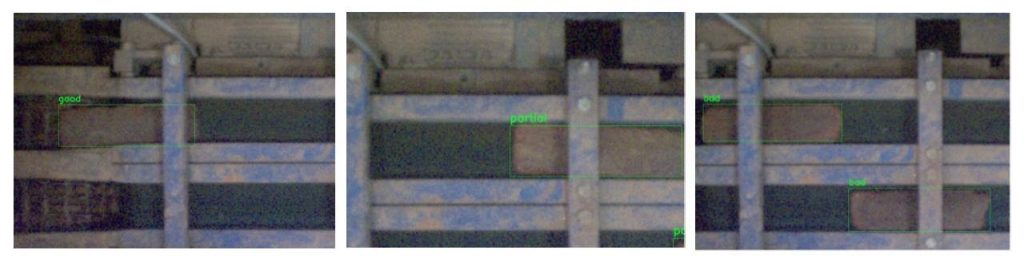

3. Three-Tier Classification System

• Intelligent sorting of bricks into three categories:
  • Good bricks: No defects or only minor imperfections that don't affect performance
  • Partial bricks: Moderate defects that may be suitable for certain applications
  • Bad bricks: Severe defects that compromise structural integrity or appearance
• Customizable classification thresholds based on product line and application

4. Automated Rejection System

• Real-time defect classification by type and severity
• Automated removal of defective bricks from the production line
• Separate handling for partial bricks that could be repurposed
• Minimal production disruption during rejection process

5. Quality Analytics Platform

• Comprehensive reporting on defect types, frequencies, and trends
• Production line performance metrics
• Batch-specific quality statistics
• Early warning system for emerging quality issues

Implementation Process

The implementation followed a structured approach to ensure minimal disruption to production:

1. Assessment & Planning (3 weeks)

   • Comprehensive analysis of current brick manufacturing and inspection processes
   • Identification of optimal inspection points in the production line
   • Camera and lighting placement planning
   • Development of integration strategy with existing systems

2. Pilot Deployment (4 weeks)

   • Installation on one production line
   • Initial model training with thousands of brick images
   • Calibration of detection thresholds and classification parameters
   • Side-by-side comparison with manual inspection results

3. System Refinement (3 weeks)

   • Analysis of false positives and false negatives
   • Additional training to improve detection accuracy
   • Fine-tuning of classification thresholds to optimize rejection rates
   • Development of hysteresis algorithms to reduce binary decision-making

4. Full-Scale Implementation (8 weeks)

   • Phased rollout across all production lines
   • Integration with production management systems
   • Comprehensive training for quality control and production staff
   • Development of standard operating procedures

5. Continuous Improvement (Ongoing)

   • Regular model updates based on new brick types and production data
   • Periodic retraining with new defect examples
   • System optimization for different product lines
   • Addition of new detection capabilities as needed

Results

After six months of operation, the Computer Vision Quality Control System delivered significant improvements across multiple performance metrics:

Quality Improvements

• 98.7% detection accuracy for critical brick defects
• 92% reduction in warranty claims related to brick quality
• Three-tier classification enabling more nuanced quality decisions
• Consistent standards across all production lines and facilities

Operational Efficiencies

• 27% increase in production throughput
• 34% reduction in waste from false positive rejections
• 68% reduction in quality control labor costs
• Automated sorting of bricks by quality level
• Real-time quality feedback to production teams

Financial Impact

• Annual savings of $1.2 million in reduced warranty claims
• $480,000 decrease in waste-related costs
• $320,000 reduction in labor costs
• Increased revenue from higher production yield
• ROI of 325% within the first year
• Payback period of 3.7 months

Additional Benefits

• Enhanced Brand Reputation: Consistent high-quality products strengthened market position
• Improved Sustainability: Reduced waste contributed to environmental goals
• Data-Driven Insights: Identification of patterns in defects led to upstream process improvements
• Better Resource Allocation: Quality control staff focused on process improvement rather than routine inspection
• Increased Production Flexibility: Ability to quickly adapt quality parameters for different product lines

Key Success Factors

Several elements were crucial to the project's success:

1. Intelligent Classification: Three-tier system (good, partial, bad) rather than binary pass/fail decisions.

2. Hysteresis Algorithms: Reduction of oscillation between classifications for borderline cases.

3. Customized Imaging: Camera and lighting systems specifically designed for brick materials and defects.

4. Balanced Approach: Focus on reducing both false negatives (missed defects) and false positives (unnecessary rejections).

5. Production Integration: Seamless incorporation into existing manufacturing lines without major modifications.

Implementation Challenges & Solutions

The project faced several challenges during implementation:

1. Material Variability

   • Challenge: Natural variations in clay and other raw materials created detection complexities
   • Solution: Development of adaptive algorithms that could account for acceptable material variations

2. Speed Requirements

   • Challenge: High-speed production lines required rapid inspection decisions
   • Solution: Optimization of image processing algorithms and implementation of parallel computing architecture

3. Dust and Environmental Factors

   • Challenge: Manufacturing environment contained dust and vibration that affected imaging
   • Solution: Installation of protective enclosures and vibration-dampening mounts for cameras

4. Classification Complexity

   • Challenge: Determining appropriate thresholds between good, partial, and bad bricks
   • Solution: Extensive training with expert input and continuous refinement based on performance data

Client Testimonial

"Visionify's brick quality detection system has transformed our quality control process. We're now able to inspect every single brick with a level of accuracy and consistency that was impossible before. The system's ability to distinguish between critical defects and minor imperfections that don't affect performance has been particularly valuable, significantly reducing waste while ensuring only quality products reach our customers. The reduction in warranty claims alone justified the investment, but we've also seen substantial improvements in production efficiency and sustainability metrics."

— Robert T., Director of Manufacturing Operations

Technology Overview

Our solution leverages several advanced technologies to provide accurate, high-speed brick inspection:

Specialized Imaging System

• High-resolution industrial cameras capture detailed images of each brick
• Custom lighting setup to highlight surface defects and irregularities
• Multiple imaging angles to ensure comprehensive coverage
• Environmental controls to maintain consistent image quality

Advanced Detection Algorithms

• Custom computer vision algorithms trained specifically for brick defect patterns
• Deep learning models that can distinguish between critical and non-critical defects
• Pattern recognition for identifying structural and cosmetic issues
• Real-time image processing for immediate classification decisions

Intelligent Classification System

• Three-tier classification (good, partial, bad) for nuanced quality decisions
• Hysteresis algorithms to prevent oscillation between classifications
• Customizable thresholds based on product specifications
• Continuous learning from new examples to improve accuracy

Analytics and Reporting

• Comprehensive tracking of defect statistics by product line and batch
• Trend analysis to identify recurring issues
• Early warning system for emerging quality problems
• Integration with production management systems

Waste Reduction Through Intelligent Classification

A key innovation in our solution was the development of algorithms that could intelligently classify bricks with minor imperfections as acceptable products. Rather than implementing a binary "perfect or reject" approach, our system:

• Identifies bricks with tiny chips that don't affect structural integrity or appearance
• Classifies these as "good bricks" rather than rejecting them
• Applies hysteresis to prevent oscillation between classifications for borderline cases
• Makes subjective decisions similar to experienced human inspectors, but with greater consistency

This approach significantly reduced waste while maintaining high quality standards, addressing one of the client's primary challenges.

Visionify – Empowering Building Materials Quality Through Vision AI

Our Computer Vision Quality Control solution provided our client with powerful tools to overcome their brick inspection challenges. Through automated detection, intelligent classification, and comprehensive analytics, Visionify not only helped reduce warranty claims but also enhanced production efficiency and sustainability.

Our client can now confidently distribute their brick products knowing that virtually all critical defects are detected before products leave the facility. This successful implementation exemplifies how Visionify's innovative computer vision solutions can transform building materials manufacturing through advanced AI technology.

Conclusion

This case study demonstrates how computer vision technology can revolutionize quality control in brick manufacturing. By implementing an AI-powered inspection system, our client was able to significantly improve defect detection while reducing waste and increasing production efficiency.

The success of this implementation has led to the company exploring additional applications of computer vision technology in their manufacturing processes, including raw material inspection and color consistency verification. The data collected from the system has also provided valuable insights for process improvements that have further enhanced product quality and production efficiency.
