Case Study: Using Computer Vision to Detect the Quality of Bricks

Client Profile

Industry: Brick Manufacturing
Size: Large national manufacturer with multiple production facilities
Location: United States
Production Volume: 500+ million bricks annually

Our client is one of the leading brick manufacturers in the United States, supplying high-quality masonry materials for residential, commercial, and architectural projects nationwide. With a strong commitment to environmental sustainability, safety, and product quality, they have built a reputation for producing durable, aesthetically appealing, and energy-efficient building materials.

The Challenge

Despite rigorous quality control processes, the client was experiencing several challenges in maintaining consistent brick quality across their high-volume production lines:

• High-Speed Production: Bricks moved rapidly on conveyor belts, making manual inspection difficult and error-prone.
• Subtle Defects: Many brick defects were minor but could significantly impact structural integrity and appearance when used in construction.
• Inconsistent Inspection: Human inspectors showed variability in defect detection, especially during long shifts.
• False Positives: Overly cautious quality control was rejecting bricks with minor, non-critical imperfections, creating unnecessary waste.
• Warranty Claims: Defective bricks that reached customers resulted in costly warranty claims, averaging $3.2 million annually.
• Production Inefficiency: The existing quality control process created bottlenecks in production flow.

The Production Director explained: "Our manual inspection process couldn't keep pace with our production volume while maintaining the level of quality our customers expect. We needed a solution that could make consistent, objective quality decisions at high speed without creating excessive waste through false rejections."

The Solution

After evaluating several options, the company partnered with Visionify to implement an AI-powered Computer Vision Quality Control System across their production facilities:

1. Inline Inspection System

• Installation of high-speed industrial cameras above conveyor belts at critical inspection points
• Custom lighting setup to highlight surface defects and structural issues
• Real-time image capture and analysis of each brick during production
• Integration with existing conveyor systems for automated rejection of defective products

2. Advanced Defect Detection

• Custom computer vision algorithms trained to identify multiple defect types:
  • Cracks and fractures
  • Chips and edge damage
  • Color inconsistencies
  • Dimensional irregularities
  • Surface texture abnormalities
• Machine learning models capable of distinguishing between critical and non-critical defects

3. Intelligent Classification System

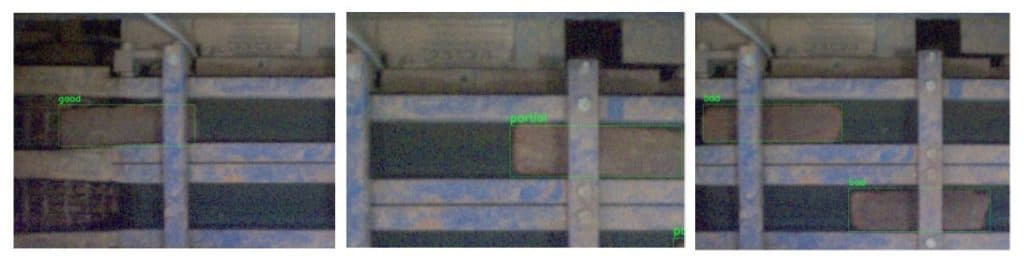

• Three-tier classification system:
  • "Good" bricks that meet all quality standards
  • "Partial" bricks with minor, non-critical imperfections
  • "Bad" bricks with defects that compromise structural integrity or appearance
• Nuanced decision-making that reduced waste by allowing minor imperfections to pass

4. Quality Analytics Dashboard

• Comprehensive reporting on defect types, frequencies, and trends
• Production line performance metrics
• Quality comparison across different facilities and production batches
• Early warning system for emerging quality issues

Implementation Process

The implementation followed a structured approach to ensure minimal disruption to production:

1. Assessment & Planning (3 weeks)

   • Comprehensive analysis of current quality control processes
   • Identification of key inspection points in the production line
   • Camera and lighting placement planning
   • Development of integration strategy with existing systems

2. Pilot Deployment (5 weeks)

   • Installation at one production line in the main facility
   • Initial model training with thousands of brick images
   • Calibration of detection thresholds and classification parameters
   • Side-by-side comparison with manual inspection results

3. Model Refinement (4 weeks)

   • Analysis of false positives and false negatives
   • Additional training to improve detection accuracy
   • Fine-tuning of classification thresholds to optimize waste reduction
   • Validation against expert human inspectors

4. Full-Scale Implementation (12 weeks)

   • Phased rollout across all production facilities
   • Integration with production management systems
   • Comprehensive training for quality control staff
   • Development of standard operating procedures

5. Continuous Improvement (Ongoing)

   • Regular model updates based on new defect patterns
   • Periodic retraining with new production data
   • System optimization for different brick types and production lines
   • Addition of new detection capabilities as needed

Results

After one year of operation, the Computer Vision Quality Control System delivered significant improvements across multiple performance metrics:

Quality Improvements

• 98.7% defect detection accuracy, compared to 86% with manual inspection
• 76% reduction in warranty claims related to brick quality
• 92% decrease in customer complaints about brick defects
• Consistent quality standards across all production facilities
• Early detection of emerging production issues before they became widespread

Operational Efficiencies

• 35% increase in production throughput due to faster inspection
• 28% reduction in quality control labor costs
• 43% decrease in waste from false rejections
• 24/7 operation without inspection fatigue or variability
• Real-time quality feedback to production teams

Financial Impact

• Annual savings of $2.4 million in warranty claim reductions
• $1.2 million decrease in waste-related costs
• Increased revenue from higher production throughput
• ROI of 245% within the first year
• Payback period of 4.8 months

Additional Benefits

• Data-Driven Insights: Identification of patterns in defects led to upstream process improvements
• Improved Sustainability: Reduced waste contributed to environmental goals
• Enhanced Brand Reputation: Consistent quality strengthened market position
• Better Resource Allocation: Quality control staff focused on process improvement rather than routine inspection
• Competitive Advantage: Ability to guarantee higher quality standards than competitors

Key Success Factors

Several elements were crucial to the project's success:

1. Hybrid Approach: Combining computer vision with human expertise for system training and edge cases.

2. Nuanced Classification: Moving beyond binary pass/fail decisions to a three-tier system that reduced waste.

3. Production Integration: Seamless incorporation into existing production lines without major modifications.

4. Continuous Learning: Regular model updates to adapt to new materials and production variations.

5. Staff Engagement: Involving quality control personnel in system development and refinement.

Implementation Challenges & Solutions

The project faced several challenges during implementation:

1. Variable Brick Appearance

   • Challenge: Wide variety of brick colors, textures, and finishes complicated defect detection
   • Solution: Development of adaptive algorithms that adjusted detection parameters based on brick type

2. High-Speed Imaging

   • Challenge: Capturing clear images of rapidly moving bricks on conveyor belts
   • Solution: Implementation of specialized high-speed industrial cameras with synchronized lighting

3. Dust and Environmental Factors

   • Challenge: Manufacturing environment created dust that affected camera performance
   • Solution: Installation of protective enclosures with automated cleaning systems

4. Distinguishing Critical Defects

   • Challenge: Determining which imperfections were cosmetic versus structural
   • Solution: Collaboration with engineering team to develop defect severity classifications

Client Testimonial

"Visionify's computer vision system has transformed our quality control process. We're now able to inspect every single brick with a level of consistency and accuracy that was impossible before. The reduction in warranty claims alone justified the investment, but we've also seen significant improvements in production efficiency and waste reduction. The system's ability to distinguish between critical and non-critical defects has been particularly valuable in optimizing our production yield."

— Robert M., Director of Production

Computer Vision Technology Overview

Our solution leverages several advanced technologies to provide accurate, high-speed brick inspection:

Image Acquisition and Processing

• High-resolution industrial cameras capture multiple angles of each brick
• Specialized lighting highlights surface irregularities and structural defects
• Real-time image processing optimizes images for analysis
• Edge computing enables immediate decision-making at the production line

Defect Detection Algorithms

• Deep learning models trained on thousands of brick images
• Convolutional neural networks (CNNs) for surface defect detection
• Computer vision algorithms for dimensional and structural analysis
• Ensemble approach combining multiple detection methods for higher accuracy

Intelligent Classification

• Multi-tier classification system that goes beyond binary pass/fail decisions
• Hysteresis-based decision making to reduce oscillation between classifications
• Confidence scoring for borderline cases
• Continuous learning from human expert feedback

Analytics and Reporting

• Comprehensive dashboards for quality metrics and trends
• Automated alerts for unusual defect patterns
• Production line performance comparisons
• Predictive maintenance indicators based on defect patterns

Visionify – Empowering Manufacturing Quality Through Vision AI

Our Computer Vision Quality Control solution provided our client with powerful tools to overcome their brick inspection challenges. Through automated defect detection, intelligent classification, and comprehensive analytics, Visionify not only helped improve product quality but also enhanced production efficiency and reduced waste.

Our client can now confidently guarantee the quality of their bricks while optimizing their production processes through data-driven insights. This successful implementation exemplifies how Visionify's innovative computer vision solutions can transform manufacturing quality control through advanced AI technology.

Conclusion

This case study demonstrates how computer vision technology can revolutionize quality control in brick manufacturing. By implementing an AI-powered inspection system, our client was able to significantly improve defect detection accuracy while reducing waste and warranty claims.

The success of this implementation has led to the company exploring additional applications of computer vision technology in their manufacturing processes, including raw material inspection and kiln monitoring. The data collected from the system has also provided valuable insights for process improvements that have further enhanced product quality and production efficiency.
